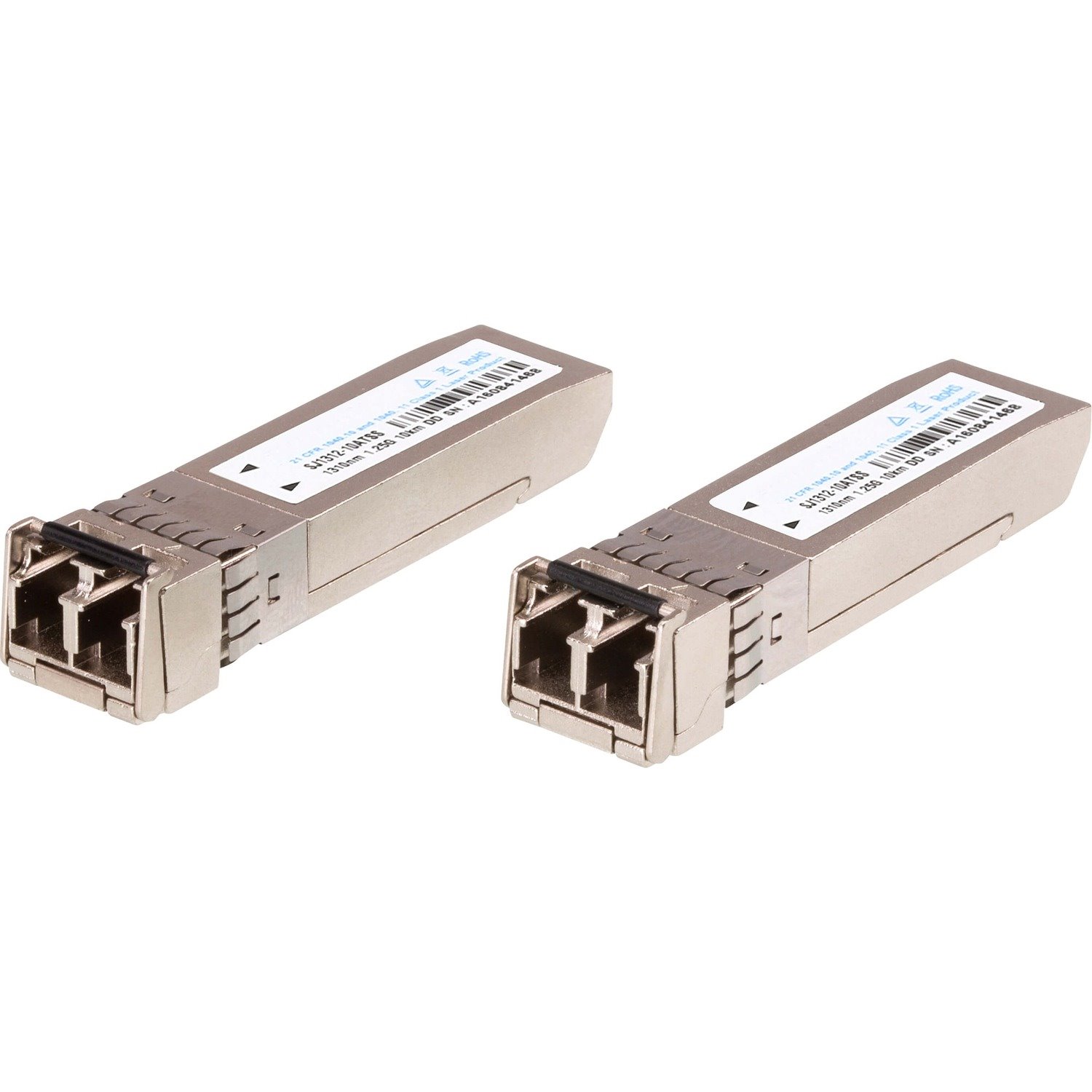

The 2A-141G 10G Multi-Mode/300M Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a multi-mode Gigabit Ethernet network cable to a network switch's SFP+ port. The 2A-141G provides 10GbE connectivity at distances up to 300 meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-141G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm. This makes the module a cost-effective and highperformance transceiver to substantially increase the span of a compatible network switch.
- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Packaged Quantity
- 2
- Product Type
- SFP+
- Technical Information
- Application/Usage
- Data Networking
- Optical Network
- Interfaces/Ports
- Total Number of Ports
- 1
- Interfaces/Ports Details
- 1 x Duplex 10GBase-X Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-X
- Physical Characteristics
- Form Factor
- Hot-pluggable
- Height
- 0.5"
- Width
- 0.6"
- Depth
- 2.2"
- Weight (Approximate)
- 0.04 lb
- Miscellaneous
- Compatibility
- MSA Compliant
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
