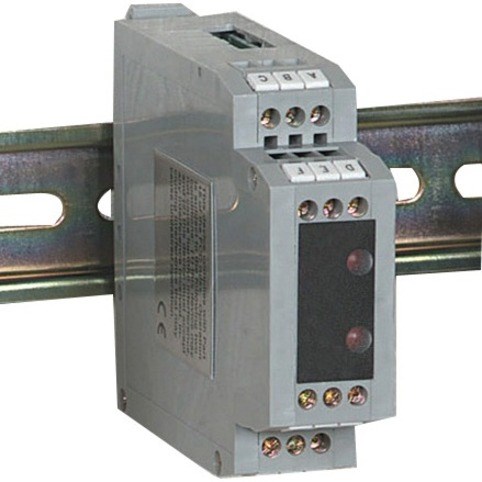

Quick Facts
- Act as repeaters, isolators, and extenders.
- The RS-422/RS-485 model isolates RS-422/485 equipment, features selectable rates between 2400 bps and 115.2 kbps, and enables a system to exceed 32-node limitations.
- The RS-232 model isolates the TD, RD, RTS, and CTS channels, supports 115.2-kbps speeds on all four channels, and extends the RS-232 signal beyond 50 feet (15.2 m).
- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Product Type
- Signal Repeater
- Warranty
- Limited Warranty
- 1 Year
- Physical Characteristics
- Height
- 0.9"
- Width
- 2.9"
- Depth
- 3.9"
- Miscellaneous
- Additional Information
- Indicators - ICD102A: (2) LEDs: Data flow direction
- Isolation - ICD102A: 2000 VRMS for 1 minute of optical isolation of data lines;ICD103A: 2000 VDC for 1 minute
- Operating Environment - Temperature: -40 to +176° F (-40 to +80° C);Humidity: Up to 95% noncondensing
- Operation - ICD102A: RS-485: 2-wire half-duplex or 4-wire full-duplex; RS-422: Full-duplex;
- ICD103A: RS-232: Half- or full-duplex
- Speed - ICD102A: 2400 bps to 115.2 kbps, switch-selectable; other rates available up to 460.8 kbps;ICD103A: Up to 115.2 kbps
- Surge Suppression - ICD102A: Bidirectional overvoltage suppressor: 6.5 V; Peak power dissipation: 600 W; Capacitance (maximum): 3000 pF
- Certifications & Standards
- CE
- Country of Origin
- United States
