- General Information
- Manufacturer
- Intel Corporation
- Manufacturer Website Address
- http://www.intel.com
- Brand Name
- Intel
- Product Series
- 600
- Product Type
- 10Gigabit Ethernet Card

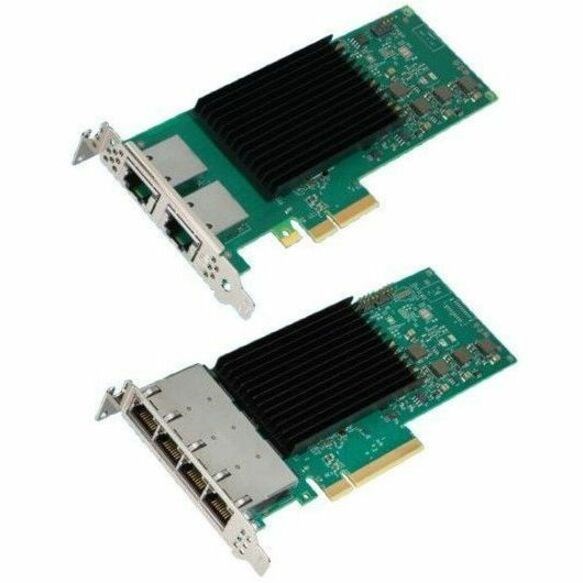

Simplify technology transitions with the Intel® Ethernet Network Adapter E610-XT2 and E610-XT4. These adapters support auto negotiation between multiple port speeds to provide maximum flexibility for dual and quad-port configurations. The adapters' efficient design also delivers a significant generation-over-generation reduction in power consumption to enable diverse use cases across servers and network appliances.
The E610-XT2 and E610-XT4 are part of the Intel® Ethernet 600 Series, delivering the latest advances in 10GBASE-T and 2.5GBASE-T performance and connectivity, including advanced security features. The 600 Series offers modern standards-based cryptographic security anchored by hardware Root of Trust (RoT) and secure communications with management controllers to enhance Ethernet security.
10GBASE-T is one of the least-disruptive paths for upgrading from 1000BASE-T. The familiar RJ45 interface simplifies migration, and backwards compatibility allows for a staged approach to higher speed networks. With 10X performance improvement, migrating from 1 to 10GbE is a solid financial decision that is also budget friendly.
- Technical Information
- Chipset Manufacturer
- Intel
- Chipset Model
- E610
- Features
- Virtual Extensible LAN (VXLAN)
- Network Virtualization using Generic Routing Encapsulation (NVGRE)
- Generic Network Virtualization Encapsulation (GENEVE)
- Single Root I/O Virtualization (SR-IOV)
- Interfaces/Ports
- Host Interface
- PCI Express 4.0 x4
- Total Number of Ports
- 2
- Number of Network (RJ-45) Ports
- 2
- Media & Performance
- Media Type Supported
- Twisted Pair
- Maximum Data Transfer Rate
- 10 Gbit/s
- Network & Communication
- Network Technology
- 10GBase-T
- 2.5GBase-T
- 5GBase-T
- 100Base-TX
- 1000Base-T
- Physical Characteristics
- Form Factor
- Plug-in Card
- Height
- 6.7"
- Width
- 2.7"
- Miscellaneous
- Application/Usage
- Network
- Device Supported
- Server
