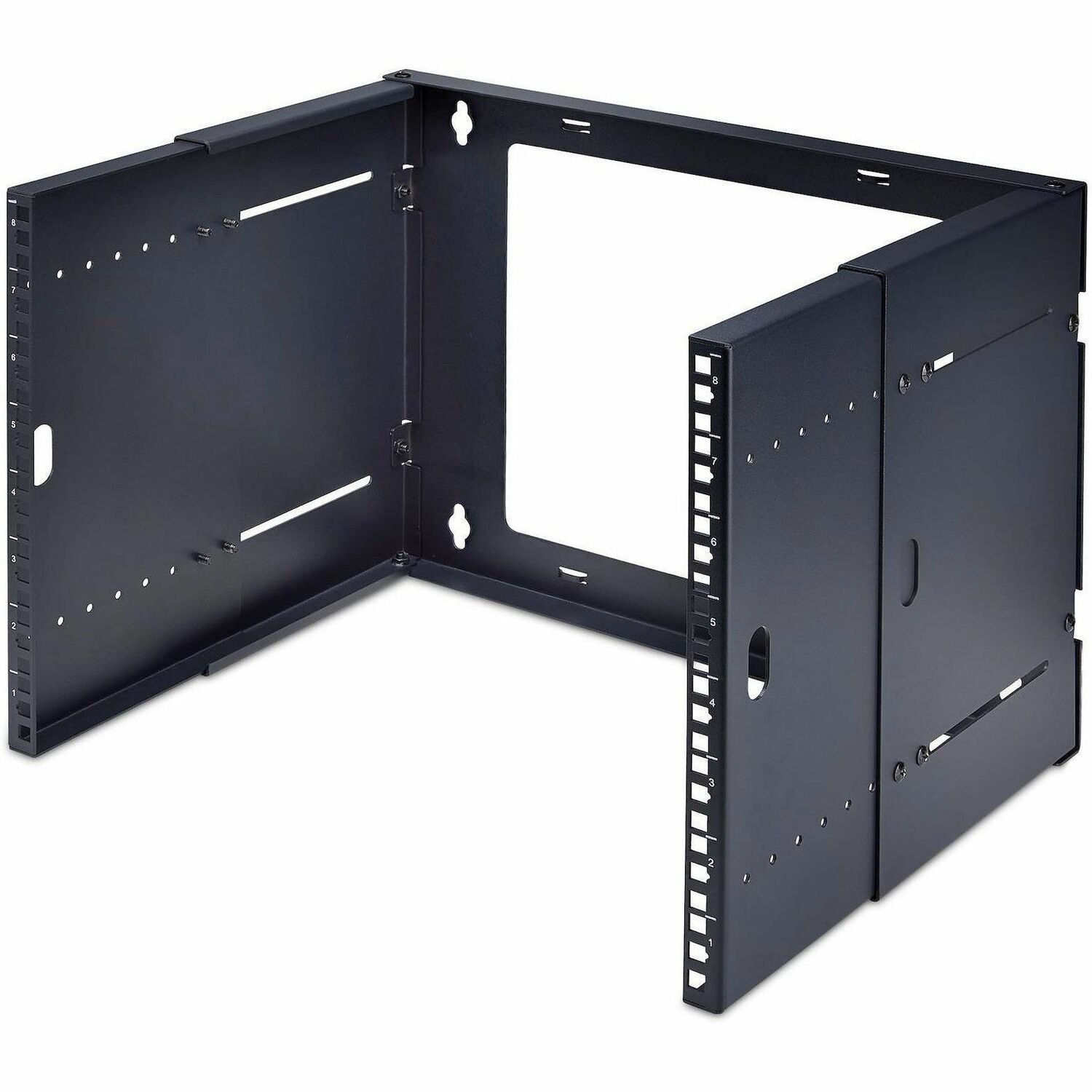

This 2-post 8U adjustable wall mount bracket provides a convenient solution for mounting 19-inch rack-mountable shallow servers, patch panels, NAS devices, UPS, data, and networking equipment. The adjustable depth enables customization to accommodate various equipment sizes.

Simplified Installation

This wall-mounted rack features fold-out sides for quick setup, ships fully assembled flat-packed, and includes all the necessary hardware: wood stud screws, M5 cage nuts, and M5 screws and speed up deployment. Four keyhole wall mounting holes provide a straightforward way to securely mount or unmount the rack. The mounting holes are spaced 16" (40.6cm) to match existing wall-stud framework.

Adjustable Depth

The 2-post open rack features an adjustable depth range from 9.6 to 15.6in (24.5 to 39.7cm) to accommodate larger rack-mountable devices. The additional depth can also be used for equipment that may require additional clearance at the back for cable management.

Built to Last

Wall-mount rack bracket is made from 14-gauge (2mm) SPCC steel that can support up to 88lb (40kg) of equipment, providing a stable and sturdy mounting point. The powder-coated finish ensures long-lasting durability, protecting the rack from wear and tear.

• General Information
• • Manufacturer
  • StarTech.com
  • Manufacturer Website Address
  • http://www.startech.com
  • Brand Name
  • StarTech.com
  • Packaged Quantity
  • 1
  • Product Type
  • Rack Frame

• Warranty
• • Limited Warranty
  • Lifetime
