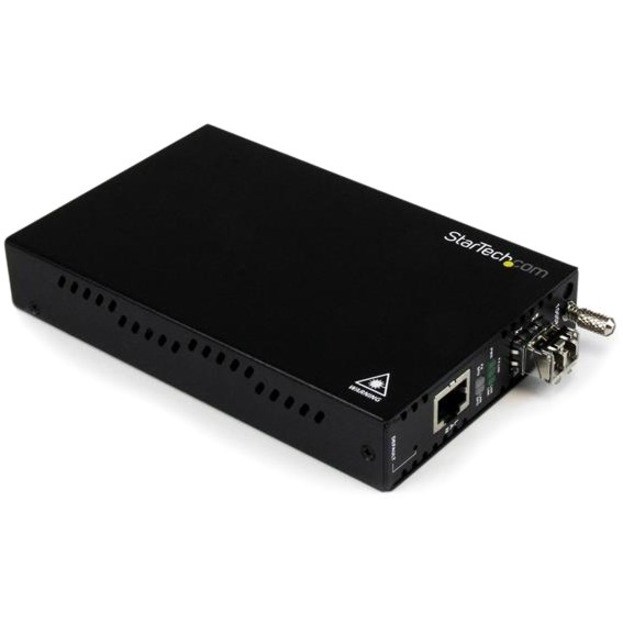

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.
Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.
An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- 2 Year
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Parallel Port
- No
- Digital Audio
- No
- Digital Audio/Video
- No
- Management Port
- No
- Number of LC Ports
- 1
- LC Port Type
- Duplex
- Number of Network (RJ-45) Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Wavelength
- 850 nm
- Maximum Distance Supported
- 1804.46 ft
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-LX/SX
- Power Description
- Power Source
- AC Adapter
- Input Voltage
- 12 V DC
- Power Consumption
- 12 W
- Plug/Connector Type
- Type M
- Physical Characteristics
- Product Color
- Black
- Form Factor
- External
- Height
- 0.9"
- Width
- 3.4"
- Depth
- 6.4"
- Weight (Approximate)
- 14.50 oz
- Miscellaneous
- Package Contents
- OAM Managed Gigabit Ethernet Fiber Media Converter
- 1 x Grounding Screw
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x Instruction Manual
- Compatibility
- StarTech 2U Rackmount Chassis (ETCHS2U)
- Certifications & Standards
- CE
- FCC
- 802.3
- 802.3ab
- 802.3ah
- 802.3u
- 802.3z
- Environmentally Friendly
- Yes
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
