Buy Supermicro SuperChassis 216BE2C-R609JBOD Drive Enclosure - 12Gb/s SAS Host Interface - 2U Rack-mountable - Black

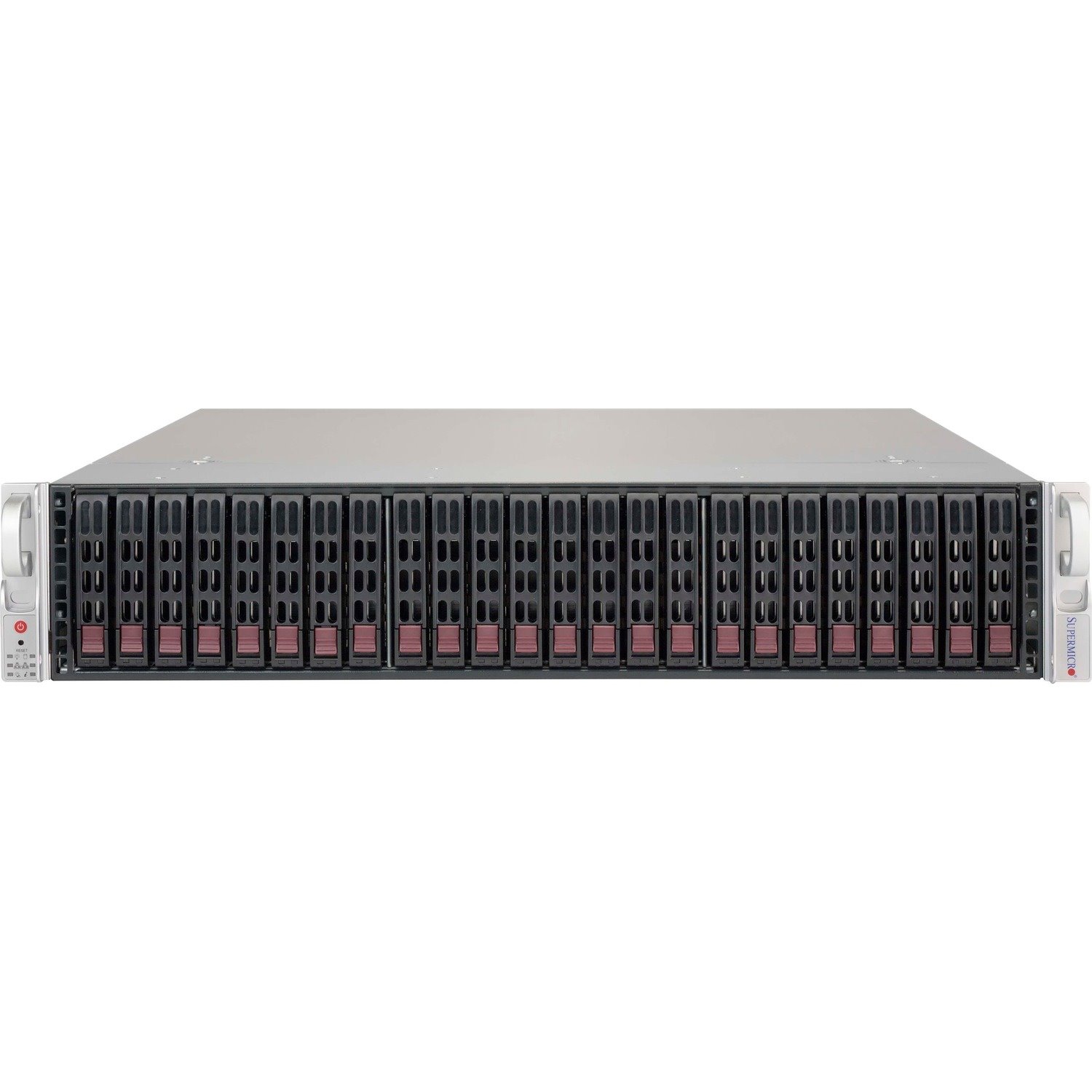

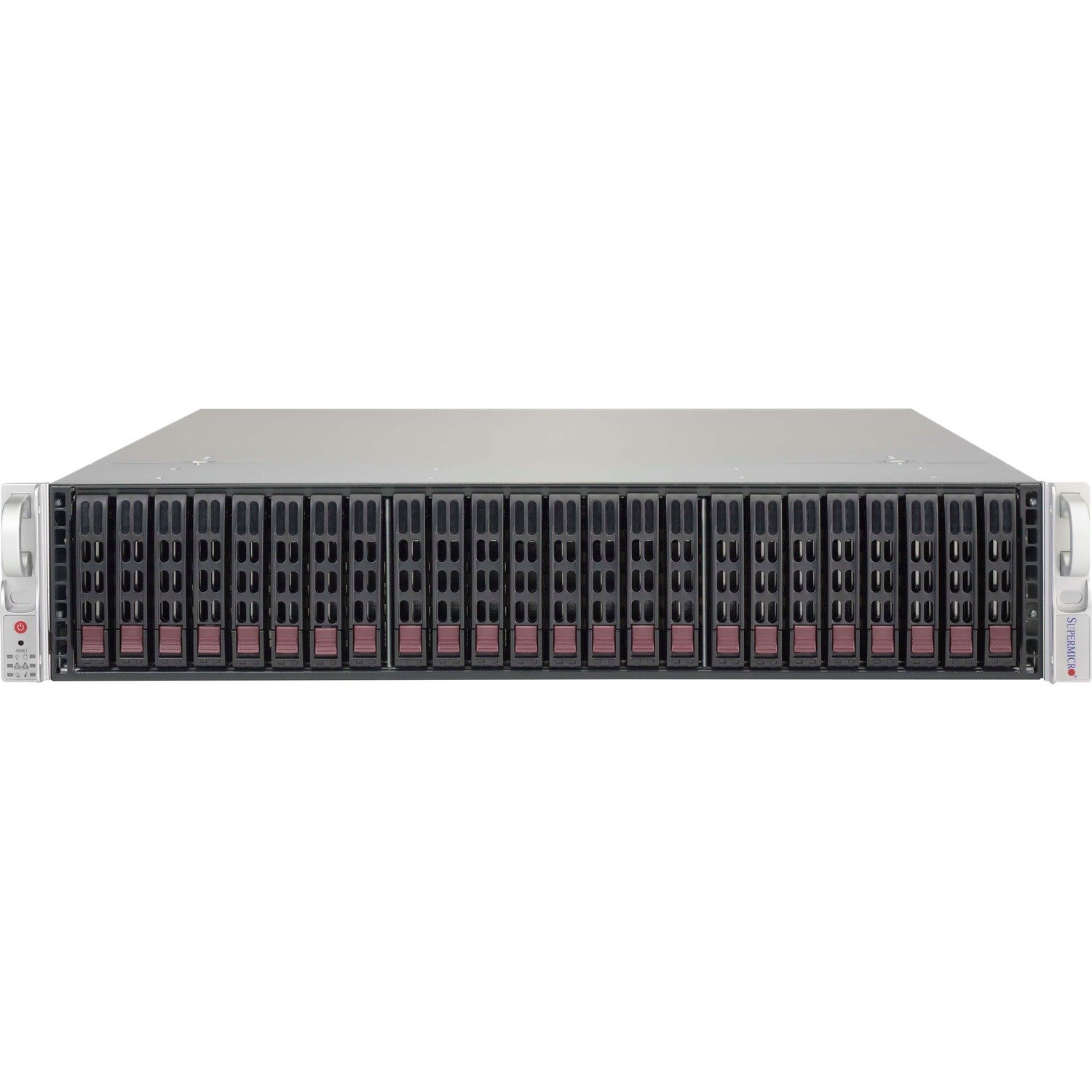

Supermicro SuperChassis 216BE2C-R609JBOD Drive Enclosure - 12Gb/s SAS Host Interface - 2U Rack-mountable - Black

Part: 2231405
Model: CSE-216BE2C-R609JBOD

$4,356.00

Availability

Out of Stock

General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperChassis
- Packaged Quantity
- 1
- Product Type
- Drive Enclosure

2U SuperChassis 216

Supermicro's SC216 maximizes storage capacity in a 2U form factor by offering 24 hot-swap 2.5" SAS3/SATA hard drive bays for applications requiring extra storage. The chassis design optimizes every aspect of interior space without compromising superior cooling capabilities. The SC216 is equipped with a redundant 740W, 920W and 1280W Platinum Level(95%) high-efficiency power supply for outstanding power savings, with specially designed optimized cooling, and 7 low-profile or WIO solution expansion slots for superior networking options. Quick-release, tool-less slide rails are available for quick installation. SC216 with SAS3 support is the ideal storage chassis for mixed flash drive based storage solution.

Warranty
- Limited Warranty
- 1 Year

Technical Information
- Number of Hard Drives Supported
- 24
- Number of Hard Drives Installed
- 0

Controllers
- Non-RAID Mode
- JBOD

I/O Expansions
- Number of Total Expansion Bays
- 24
- Number of 2.5" Bays
- 24
- Hot Swappable Bays
- Yes

Interfaces/Ports
- Host Interface
- 12Gb/s SAS

Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Cooling Fan
- Yes
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Height
- 3.5"
- Width
- 17.2"
- Depth
- 24.8"
- Weight (Approximate)
- 31 lb

Miscellaneous
- Package Contents
- - SuperChassis 216BE2C-R609JBOD
  - 1 x SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
  - 1 x Middle fan bracket for 826B/216B with 3 X 8cm fan
  - 1 x CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
  - 1 xLP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
  - 1 x 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
  - 1 x JBOD chassis power control board with IPMI remote on/off feature
  - 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
  - 3 x 10.5" , 4 PIN MIDDLE FAN POWER EXTENSION (PWM)
  - 2 x US POWER CORD 16AWG, PB FREE
  - 1 x PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
  - 1 x 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
  - 1 x 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS
  - 1 x INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
  - 4 x Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s
  - 4 x Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
  - 1 x Top cover for SC826B/216B/825B
  - 1 x SC119 Intrusion assembly
  - 7 x Blank LP L-bracket (5x5 square hole)
  - 3 x 80x80x38 mm, 7K RPM, Middle Cooling Fan w/ New Plastic Mater
  - 1 x Front control board Dual color LED(FP826-D)forSC826,213,216,219
  - 1 x Front panel adaptor board (TB826) forSC826,213,216,219
  - 1 x 826B/216B rear dummy cover for 2 X 2.5
  - 24 x Black gen 3rd hot-swap 2.5inch HDD tray
  - 1 x PDB with 23pairs input connectors for SC216B
  - 1 x I/O shield without any opening
  - 2 x 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.
  - 1 x Rail Screw Bag
  - 1 x Rail set, quick/quick, default for 2,3U 17.2";W
  - 1 x Threaded rail adapter default for round hole rack
  - 1 x 216B/826B LP rear window,RoHS/REACH,PBF
