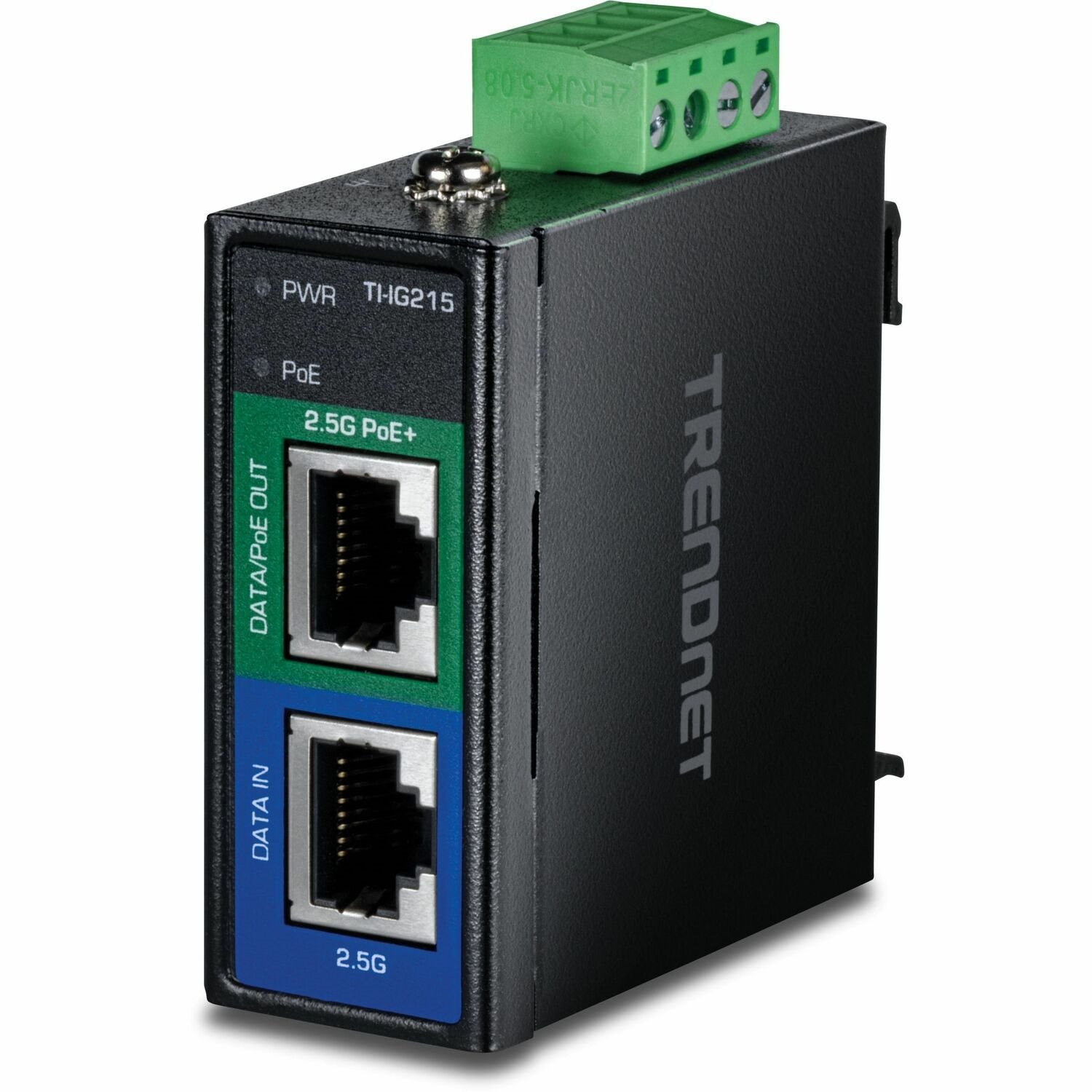

TRENDnet's Industrial 2.5G PoE+ Injector, model TI-IG215, allows users to add PoE+ power to a non-PoE 2.5G switch. Connect the 2.5G PoE+ injector to a non-PoE switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE/PoE+ device. This multi-gig industrial PoE+ injector supplies up to 30W of power to a PoE device. The fanless design conveniently eliminates operating noise and lowers energy consumption. The 2.5G PoE+ injector is equipped with an IP50-rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° - 167° F) for harsh industrial environments.
PoE+
This multi-gig PoE+ injector supplies up to 30W of power to a PoE device.
2.5G Ports
Features a high-speed 2.5G port (data in) and a high-speed 2.5G PoE+ port (data + PoE out).
Industrial Design
IP50-rated metal enclosure with a high degree of vibration and shock resistance, and an extreme operating temperature range of -40° - 75° C (-40° - 167° F).
PoE+
This industrial 802.3at PoE injector supplies up to 30W of power to PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at) devices
Industrial Design
Equipped with an IP50-rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° - 167° F) for industrial environments
2.5G Port
1 x 2.5G port (data in) and 1 x 2.5G PoE+ port (data + PoE out)
PoE Distance
Provides a PoE network connection up to 100m (328 ft.) away from the multi-gig industrial 802.3at PoE+ adapter
LED Indicators
LED indicators on the industrial PoE injector conveys power and PoE connectivity
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges Fanless Design Fanless design on the injector conveniently eliminates operating noise and lowers energy consumption
Housing Design
Compact and sturdy metal housing for installation flexibility
- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Type
- PoE+ Injector
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Protection Type
- Surge Protection
- Power Description
- Input Voltage
- 48 V DC
- 57 V DC
- Maximum Output Power
- 30 W
- Interfaces/Ports
- Input Ports
- 1 x 2.5 Gigabit Ethernet
- Output Ports
- 1 x 2.5 Gigabit PoE+
- Physical Characteristics
- Form Factor
- DIN Rail/Wall Mountable
- Height
- 1"
- Width
- 2.3"
- Length
- 2.4"
- Weight (Approximate)
- 4.69 oz
- Miscellaneous
- Package Contents
- Industrial 2.5G PoE+ Injector
- Removable Terminal Blocks
- DIN-Rail and Wall Mount Kit
- Certifications & Standards
- CE
- FCC
- LVD
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-31)
- Vibration (IEC 60068-2-6)
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bz
- IP50
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
