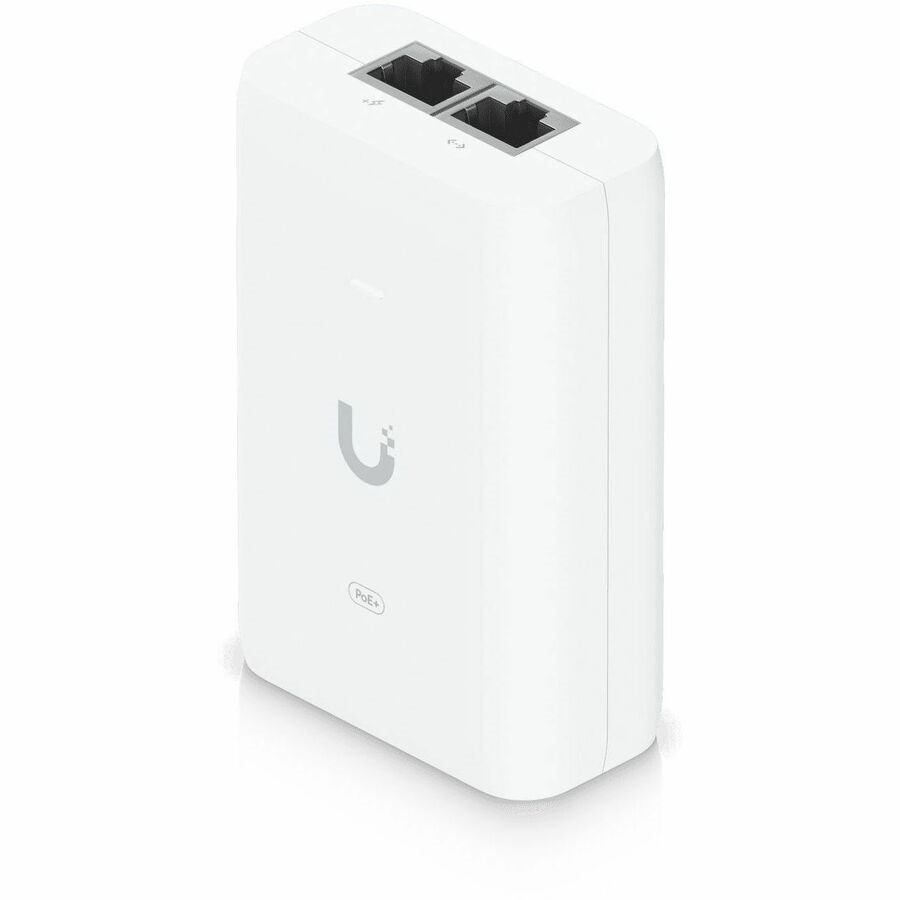

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
- Delivers up to 30W of PoE+
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE+ output
- LED indicator for status monitoring
- General Information
- Manufacturer
- Ubiquiti Inc.
- Manufacturer Website Address
- http://www.ui.com
- Brand Name
- Ubiquiti
- Product Type
- PoE Injector
- Technical Information
- Protection Type
- Surge Protection
- Clamping Protection
- Peak Pulse Current
- Over Current
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Output Voltage
- 48 V DC
- Maximum Input Current
- 750 mA
- Maximum Output Current
- 650 mA
- Maximum Output Power
- 30 W
- Interfaces/Ports
- Input Ports
- 1 x RJ-45
- Output Ports
- 1 x PoE
- Physical Characteristics
- Height
- 3.7"
- Width
- 2.4"
- Depth
- 1.4"
- Weight (Approximate)
- 5.50 oz
- Miscellaneous
- Compatibility
Ubiquiti Products:
- U6-LR Access Point
- U6-IW Access Point
- UTP-G3-Touch-Wall Next Generation Smartphone
- UVC-G5-PTZ PTZ Camera
- UVC-AI-DSLR Indoor/outdoor Camera
- UDB-Pro Wireless Bridge
- UA-Ultra Access Reader
- Certifications & Standards
- CE
- FCC
- IC
- UL
- UKCA
- KC
- EAC
- VI
- CCC
- cULus
- NOM
- KCC
- Environmental Compliance
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- China
