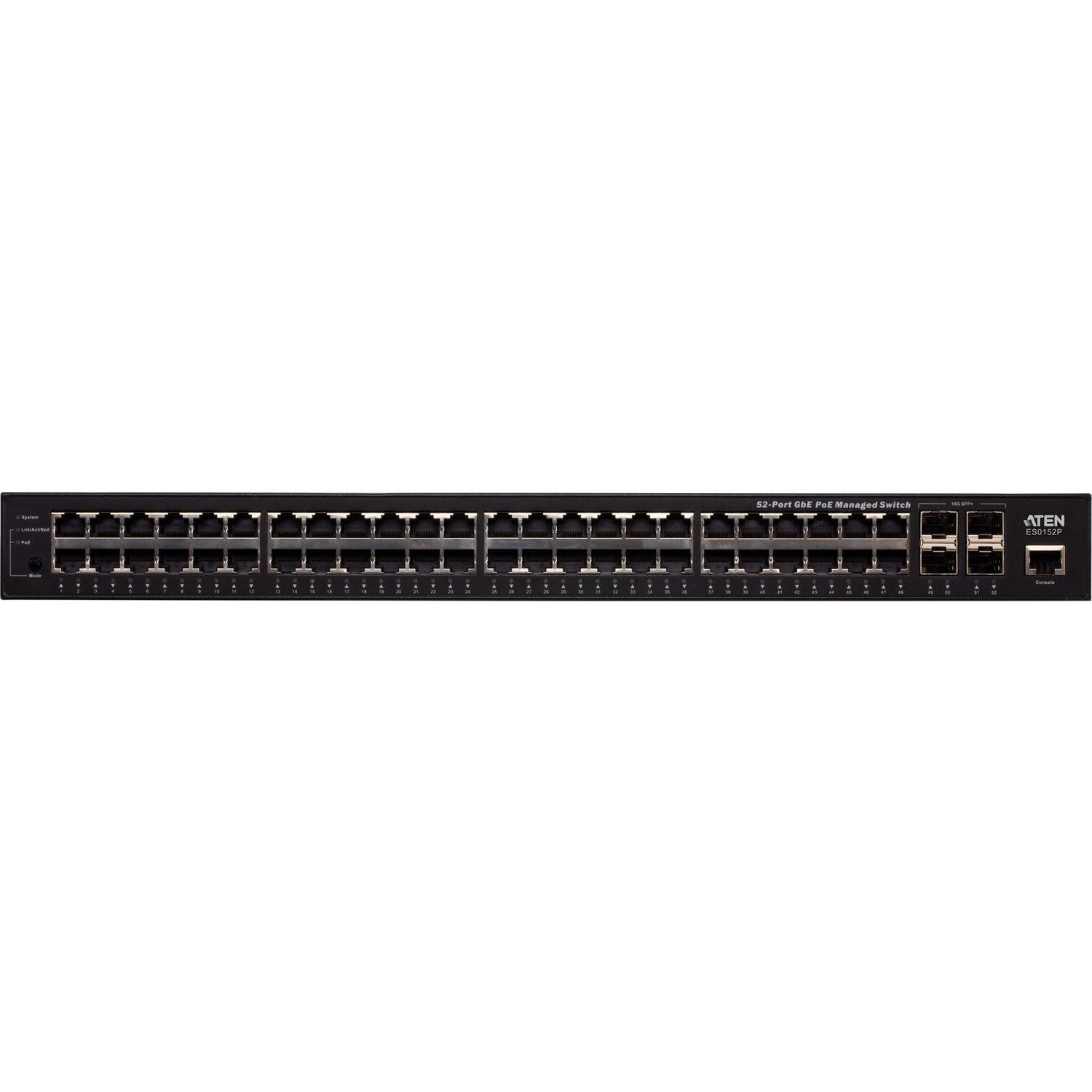

ATEN 52-Port GbE PoE Managed Switch

  • Part: 2063111
  • Model: ES0152P
$3,990.00

Availability

Out of Stock

The ES0152 / ES0152P is a feature-rich managed switch for ATEN KE series KVM over IP extenders and VE89 series Video over IP extenders. Ideal for installation in combination with the KE / VE89 series products, the ES0152 / ES0152P helps users build their OT infrastructure with the KE series by eliminating the hassles of complicated setup.

Deploying the ES0152 / ES0152P is fast and easy. With everything plug and play, there is no need to install software or configure devices. Simply connect the KE / VE89 transmitters and receivers to the ES0152 / ES0152P using Cat 5e/6 cables and all KE / VE89 series devices on the same LAN will automatically be detected.

The ES0152 / ES0152P network switch provides a 52-port, high-performance configuration, a complete array of L2 features and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support and LLDP, delivering a versatile solution for improving network performance.

Both the ES0152 and the ES0152P offer a combination of SFP+ (fiber) and RJ45 (copper) ports for servicing a range of network needs. The ES0152 delivers 4 (1G/10G) SFP+ and 48 (10M/100M/1G) RJ45 ports while the ES0152P supports 4 (1G/10G) SFP+ and 48 (10M/100M/1G) RJ45 with PoE+ (Support 802.3at/af) ports. Featuring Power over Ethernet (PoE) function, the ES0152P can provide up to 740 Watts power budget across 48 RJ45 ports thus eliminating the need for a power adapter and effectively reducing the power configuration cost.

The ES0152 / ES0152P comes with embedded DMS functions to facilitate device management anytime and anywhere. Its intuitive, user-friendly interface enables IT administrators to set up and manage their networks and all the connected KE / VE89 devices effortlessly. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.

With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0152 / ES0152P is an ideal network switch solution for SMBs and enterprises, and even more so for those that have chosen to adopt ATEN KE series KVM over IP extenders or VE89 series Video over IP extenders into their OT infrastructure.

  • General Information
    • Manufacturer
    • ATEN Technology, Inc
    • Manufacturer Website Address
    • http://www.aten.com/us/en/
    • Brand Name
    • ATEN
    • Packaged Quantity
    • 1
    • Product Type
    • Ethernet Switch

  • Interfaces/Ports
    • Total Number of Network Ports
    • 48
    • Uplink Port
    • Yes
    • Modular
    • Yes
    • Network (RJ-45)
    • Yes
    • Port/Expansion Slot Details
    • 48 x Gigabit PoE+
    • 4 x 10 Gigabit Ethernet Uplink
  • Media & Performance
    • Media Type Supported
    • Optical Fiber
    • Twisted Pair
    • Ethernet Technology
    • Gigabit Ethernet
    • 10 Gigabit Ethernet
    • Network Technology
    • 10/100/1000Base-T
    • 10GBase-X
  • I/O Expansions
    • Number of Total Expansion Slots
    • 4
    • Expansion Slot Type
    • SFP+
    • Number of SFP+ Slots
    • 4
  • Network & Communication
    • Layer Supported
    • 3
  • Management & Protocols
    • Manageable
    • Yes
  • Power Description
    • PoE (RJ-45) Port
    • Yes
    • PoE Budget
    • 740 W
    • Frequency
    • 50 Hz
    • 60 Hz
    • Power Source
    • Power Supply
    • Power Consumption
    • 885.36 W
  • Physical Characteristics
    • Product Material
    • Metal
    • Form Factor
    • Rack-mountable
    • Height
    • 1.7"
    • Width
    • 17.4"
    • Depth
    • 14.8"
    • Weight (Approximate)
    • 12.35 lb
  • Miscellaneous
    • Package Contents
      • 52-Port GbE PoE Managed Switch
      • 1 x AC Power Cord
      • 1 x RJ45 to DB9 Serial Console Cable
      • 1 x Foot Pad Set (4 pcs.)
      • 1 x Mounting Kit
      • 1 x User Instructions
