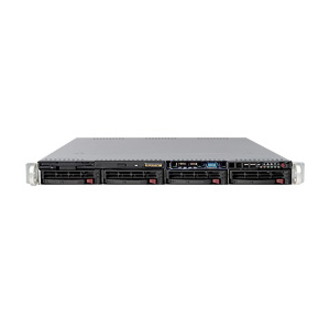

Designed for optimal performance, the dual-processor SuperServer 6016T-MTLF Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density 1U form-factor. This 6016 SuperServer is ideal for network infrastructure, front-end enterprise and minimal-downtime cluster server systems.
- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server Barebone System
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 2
- Processor Socket
- Socket B LGA-1366
- Processor Supported
- Xeon
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- 5500
- Memory
- Maximum Memory Supported
- 48 GB
- Memory Technology
- DDR3 SDRAM
- Memory Standard
- DDR3-1333/PC3-10600
- Total Number of Memory Slots
- 6
- Storage
- Optical Drive Type
- DVD-Reader
- Optical Media Supported
- DVD-ROM
- Controllers
- Controller Type
- Serial ATA/300
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 1+0, 5
- Display & Graphics
- Graphics Controller Model
- G200eW
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 4
- Number of 3.5" Bays
- 4
- Total Number of Expansion Slots
- 1
- Number of PCI Express x16 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 2.0 Ports
- 2
- Network (RJ-45)
- Yes
- VGA
- Yes
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 350 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 19.8"
- Miscellaneous
- Package Contents
- SuperServer 1016I-M6F Barebone System
- 1 x Super X8DTL-IF Motherboard
- 1 x 1U Black Chassis
- 1 x BPN-SAS-815TQ-O-P Backplane
- 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
- 1 x SATA SET OF 4-56/45.5/35/23CM ROUND S-RA
- 1 x CD For X8 series
- 1 x RISER CARD 1U PCI-E 16X TO 16X
- 1 x 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP)
- 1 x 1U PASSIVE CPU HS FOR X8DTL MB (must be placed on FRONT CPU)
- 1 x 1U 350W MULTI OUTPUT 80PLUS GOLD PWS
- 1 x Front ctrl cable 16 PIN TO 16 PIN, LF, Flat (L=54cm)
- 1 x ROUND FLOPPY CABLE 60CM FOR 5013S, LF
- 4 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
- 1 x THIRD GENERATION GUIDE RAIL ASSY. Outer slides extendable length: 26" to 33.5"
- 4 x Hot-swappable Hard Drive Tray
- Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
Expansion Slot Detail:
- PCI Express x16 slot has the bus speed of PCI Express x8
- Environmentally Friendly
- Yes
