- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server Barebone System

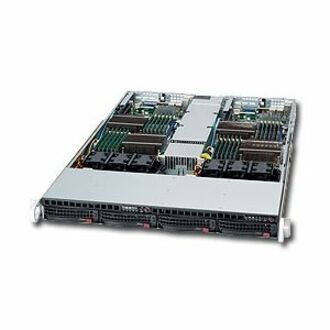

Designed for optimal performance, the dual-processor SuperServer 6016TT-IBQF Barebone System supports the QPI format quad-core/dual-core Xeon processors in a high-density 1U form-factor. This SuperServer is ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 2
- Processor Socket
- Socket B LGA-1366
- Processor Supported
- Xeon
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- 5500
- Memory
- Maximum Memory Supported
- 48 GB
- Memory Technology
- DDR3 SDRAM
- Memory Standard
- DDR3-1333/PC3-10600
- Total Number of Memory Slots
- 12
- Controllers
- Controller Type
- Serial ATA/300
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5, 10
- Display & Graphics
- Graphics Controller Model
- G200eW
- Graphics Memory Capacity
- 8 MB
- Graphics Memory Technology
- DDR2 SDRAM
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 2
- Number of 3.5" Bays
- 2
- Total Number of Expansion Slots
- 1
- Number of PCI Express x16 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 2.0 Ports
- 2
- Network (RJ-45)
- Yes
- VGA
- Yes
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 1200 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 27.8"
- Weight (Approximate)
- 40 lb
- Miscellaneous
- Package Contents
- SuperServer 6016TT-IBQF Barebone System
- 2 x Super X8DTT-IBQF Motherboard
- 1 x 1U Black SC808 Chassis
- 2 x Air Shroud
- 1 x 1U SAS / SATA Backplane
- 2 x Front Panel Switch Cable (Round), 16-pin to 16-pin, 51cm, Pb-free
- 1 x SATA Set of 4 (Round) Straight to Right Angle, (51/47/41/37)cm
- 1 x Power Cord
- 1 x Driver CD
- 6 x 4-pin Counter-rotating Cooling Fan
- 2 x Front Control Panel
- 4 x Hot-swappable Hard Drive Trays
- 4 x Heatsink / Retention
- 1 x 1U Mounting Rail Kit
- 1 x Power Backplane
- 1 x 1200W 1U Cold Swap Gold level power supply
- 2 x 1U: PCI- E x16 Slot to 1 PCI-E x16 Slot
- Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
Infiniband:
- Mellanox ConnectX QDR Infiniband 40Gbps Controller with QSFP Connector
- Environmentally Friendly
- Yes
